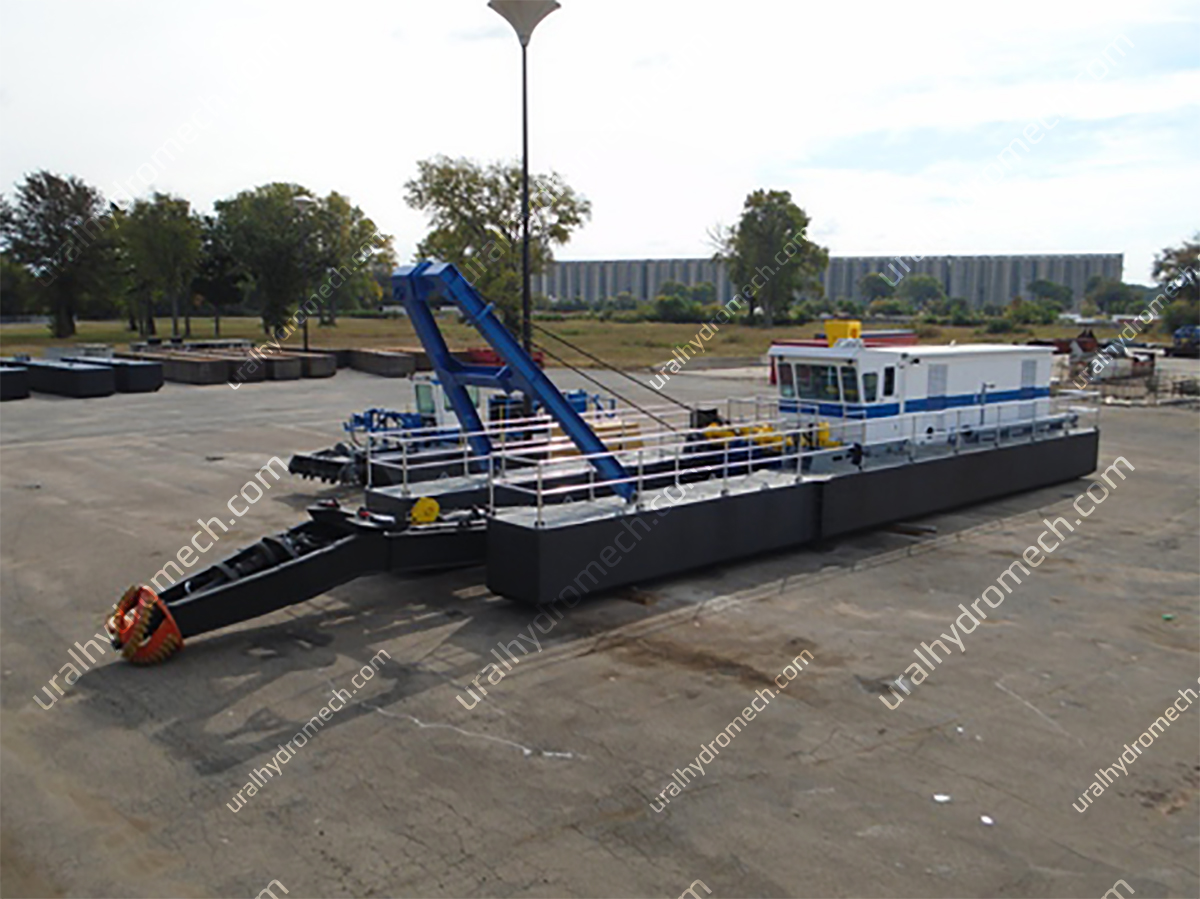

A suction dredger Neptus 800

NEPTUS 800 GENERAL INFORMATION Ed.izm. 1. Category of soils developed on ENIR E2 I - IV 2. Performance in terms of dry soil m3/h 80 3. The pressure of 15-80 m 4. Distance transport of soil, both horizontally 1200 m 5. The maximum depth of the development of the hydro cultivator: m 14 - with additional ejector m 30 6. The minimum depth of development 1.2 m 7. The diameter of the pressure pipeline 200 mm 8. Overall dimensions assembled: 9. The length of the dredge (frame) m 14 10. The width of the dredger m 5.4 11. The total weight of the dredger t 45 12. Sludge in working condition (average) 0.75 13. The height of the dredge from the horizon of water m 4.5 14. Maximum installed power: kW 200-500 15. Length megantoni slotted m 4 Case 1. Engine room: Length m 10 Width 2.4 m Height m 2.5 2. The control room: Length m 1.5 Width 2.4 m Height m 2.4 3. The maximum height of the roof above the deck: 3.5 m Main unit 1. Brand gruntmanis 2. The water capacity m3/h 800 3. Working pressure on the water m 15-80 4. The diameter of the pipes: Suction 250 mm Pressure 200 mm 5. Diesel engine: YAMZ, Cummins, Caterpillar, 6CHN, 8ЧН Power kW (HP) 120-220 (163-300) The rotational speed rpm 2000 Weight kg 1580 The volume of fuel tanks 8 m3 6. Method fill vacuum gruntmanis 7. Reducer SYSTEM PAPILIONARIA Winches 4 PCs Traction t 2 Rope length m 120 The speed of coiling rope on the first layer, m/s 0.3 Rope diameter mm 12 The rope capacity m 120 Power of El.motor kW 12 RAMAPAJAMA DEVICE 1. Lifting boom Length m 14 The multiplicity of the polyspast. 3 The diameter of the blocks. mm 315 Number of blocks: 3 PCs 2. Ramapajama winch Traction winch lifting the suction of a slurry pipeline n/m 32 The number of threads of the chain block for lifting powder 6 The rate of rise of baking powder m/s 0.3 Rope diameter 18 mm Power of El.motor kW 18 AUXILIARY OPERATING MECHANISMS AND DEVICES Extractor pump Type K 100-80-160 Productivity m3/h 100 Working pressure m 32 Power kW 15 Rpm rpm 2900 Pump jet hydraulic Ripper Type D320-50 Productivity m3/h 320 Working pressure m3/h 50 Power kW 75 Rpm rpm 1500 ELECTRICAL EQUIPMENT Diesel generator set Prime power kW / kVA 200 / 225 Standby power kW / kVA 220 / 248 Produced the current 3-phase / 400 V / 50 Hz ADDITIONAL EQUIPMENT AND EQUIPMENT Heating and air conditioning Jib crane g/p 1-3T Piling machine Milling Ripper, deuteron cutters 0.8 m-1.5 m Hydraulic system of working equipment insulated or single-loop Video surveillance system for 5 cameras analog or IP type Seat / console with the operational management bodies Control system performance Emergency monitoring - with separate devices United on 1 monitor, industrial computer GSM remote monitoring system performance Reinforced hull of marine steel Anti-corrosion coating enamel epoxy-polyurethane - antiprotease
